Brusné kotouče z KNB



1A1 - 1


Úvod
1A1 - 2
14A1
1A1 - 1
A8
6A2
9A3
12A2 - 45°
11A2
12V2
12V5 - 45°
12C2
11V9 - 70°
12V9 - 45°
12A2 - 20°
4A2
12R9
12R4
4ET9
12V5 - 20°
14EE1X
1E6Q
1E1
1D1
1V1 - 2
1V1
4V9
1F1X
1A1R
Elborové brusné plátno

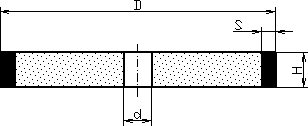

Označení typu kotouče Hlavní rozměry v mm cena Kč bez DPH
D H d S keramická vazba
1A1-1 20x10x3 20 10 6 3 879
1A1-1 20x16x3 20 16 6 3 1 275
1A1-1 20x20x3 20 20 6 3 1 541
1A1-1 22x8x3 22 8 8 3 763
1A1-1 22x13x3 22 13 8 3 1 179
1A1-1 25x5x5 25 5 6 5 826
1A1-1 25x10x5 25 10 6 5 1 501
1A1-1 25x20x5 25 20 6 5 2 764
1A1-1 30x6,3x5 30 6,3 13 5 1 226
1A1-1 30x10x5 30 10 13 5 1 862
1A1-1 30x12x5 30 12 13 5 2 136
1A1-1 30x20x5 30 20 13 5 3 325
1A1-1 32x6,3x5 32 6,3 13 5 1 415
1A1-1 32x10x5 32 10 13 5 1 947
1A1-1 32x12x5 32 12 13 5 2 310
1A1-1 32x20x5 32 20 13 5 3 543
1A1-1 35x10x5 35 10 10 5 2 136
1A1-1 35x15x5 35 15 10 5 3 032
1A1-1 35x20x5 35 20 10 5 3 878
1A1-1 40x8x5 40 8 6 5 2 014
1A1-1 40x10x5 40 10 13 5 2 458
1A1-1 40x20x5 40 20 13 5 4 345
1A1-1 40x25x5 40 25 13 5 5 239
1A1-1 50x10x5 50 10 16 5 3 031
1A1-1 50x20x5 50 20 16 5 5 411
1A1-1 50x25x5 50 25 16 5 6 649
1A1-1 50x32x5 50 32 16 5 8 226
1A1-1 63x10x5 63 10 20 5 3 711
1A1-1 63x20x5 63 20 20 5 6 836
1A1-1 63x32x5 63 32 20 5 10 271
1A1-1 70x10x5 70 10 20 5 4 101
1A1-1 70x18x5 70 18 20 5 6 859
1A1-1 70x24x5 70 24 20 5 8 831
1A1-1 70x32x5 70 32 20 5 11 519
1A1-1 80x10x5 80 10 20 5 4 567
1A1-1 80x20x5 80 20 20 5 8 504
1A1-1 80x32x5 80 32 20 5 13 006
1A1-1 100x9x5 100 9 20 5 5 166
1A1-1 100x10x5 100 10 20 5 5 690
1A1-1 100x11x5 100 11 20 5 6 189
1A1-1 100x12x5 100 12 20 5 6 769
1A1-1 100x14x5 100 14 20 5 7 647
1A1-1 100x16x5 100 16 20 5 8 639
1A1-1 100x20x5 100 20 20 5 10 634
1A1-1 100x32x5 100 32 20 5 13 270
1A1-1 110x10x5 110 10 20 5 6 223
1A1-1 110x17x5 110 17 20 5 9 950
1A1-1 110x19x5 110 19 20 5 11 178
1A1-1 110x20x5 110 20 20 5 11 598
1A1-1 110x24x5 110 24 20 5 13 736
1A1-1 110x30x5 110 30 20 5 16 895
1A1-1 125x10x5 125 10 32 5 7 052
1A1-1 125x12x5 125 12 32 5 8 159
1A1-1 125x17x5 125 17 32 5 11 276
1A1-1 125x18x5 125 18 32 5 11 805
1A1-1 125x19x5 125 19 32 5 12 350
1A1-1 125x20x5 125 20 32 5 13 002
1A1-1 125x25x5 125 25 32 5 16 045
1A1-1 125x27x5 125 27 32 5 17 047
1A1-1 125x32x5 125 32 32 5 20 088
1A1-1 150x10x5 150 10 32 5 8 134
1A1-1 150x16x5 150 16 32 5 12 690
1A1-1 150x20x5 150 20 32 5 15 473
1A1-1 150x32x5 150 32 32 5 23 870
1A1-1 200x8x5 200 8 32 5 8 836
1A1-1 200x10x5 200 10 32 5 10 859
1A1-1 200x12x5 200 12 32 5 12 950
1A1-1 200x16x5 200 16 32 5 15 988
1A1-1 200x20x5 200 20 32 5 19 556
1A1-1 250x10x5 250 10 76 5 12 705
1A1-1 250x16x5 250 16 76 5 19 690
1A1-1 250x20x5 250 20 76 5 24 145
1A1-1 250x25x5 250 25 76 5 29 249
1A1-1 300x8x5 300 8 127 5 12 358
1A1-1 300x10x5 300 10 127 5 15 100
1A1-1 300x12x5 300 12 127 5 17 744
1A1-1 300x16x5 300 16 127 5 23 288
1A1-1 300x20x5 300 20 127 5 28 183
1A1-1 300x25x5 300 25 127 5 35 071
1A1-1 350x10x5 350 10 127 5 17 784
1A1-1 350x16x5 350 16 127 5 27 499
1A1-1 350x20x5 350 20 127 5 34 816
1A1-1 350x40x5 350 40 127 5 58 296
1A1-1 400x20x5 400 20 203 5 37 596
1A1-1 400x25x5 400 25 203 5 46 152
1A1-1 400x25x10 400 25 203 10 66 800
1A1-1 400x32x10 400 32 203 10 87 700
1A1-1 500x10x5 500 10 203 5 25 350


Příklad objednávky:
  1A1-1   25x20x5x6   LKV50M   160/125   K(ST1)   100     1 ks
typ nástroje rozměry zrnitost v µm vazba koncentrace
